2026In progress
Qcells plant
Qcells · White, GA
- Electrical power hook-up for dust collector equipment
- Disconnects, feeders and final connections
PROCESS TOOLS · HVAC EQUIPMENT · ELECTRICAL GEAR · AMHS
Equipment Installation & Hook-up
Equipment is where the trades meet. PROCON E&C receives, rigs, sets and hooks up the equipment a plant runs on: process tools, HVAC equipment such as AHUs, MAUs, dry cooling coils and exhaust fans, electrical gear such as switchgear, transformers, UPS and MCCs, and AMHS rail in the fab. Our own crews connect the piping, power and controls to each unit, so setting and hook-up stay inside one team. In a fab, tool power runs from the sub-fab, through the waffle slab and under the access floor, to the tool main disconnect.

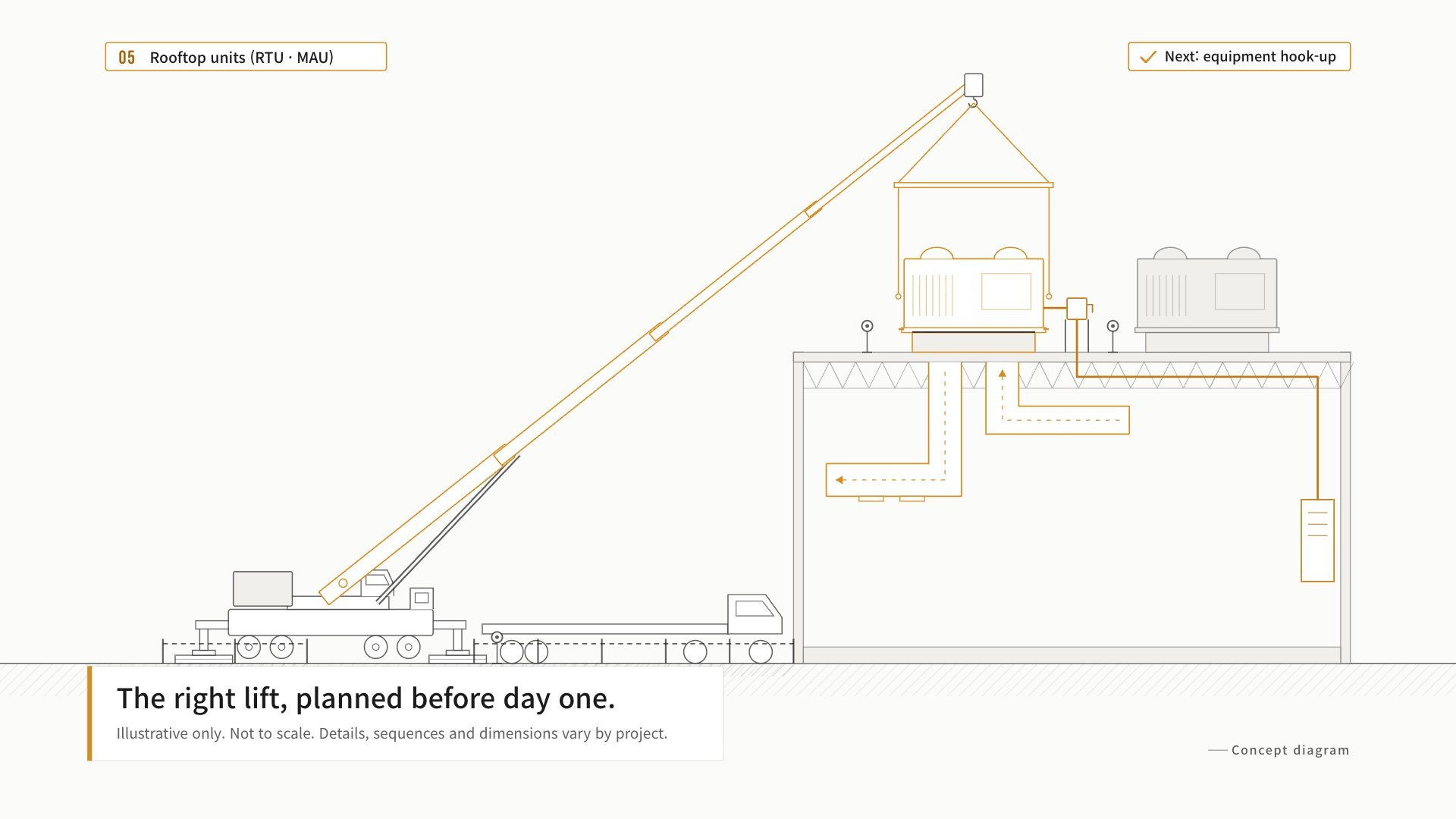

Concept video · 24 s Planned Lift — rooftop units, from the pick to hook-up
- 01Choosing the lift method
- 02Before the pick

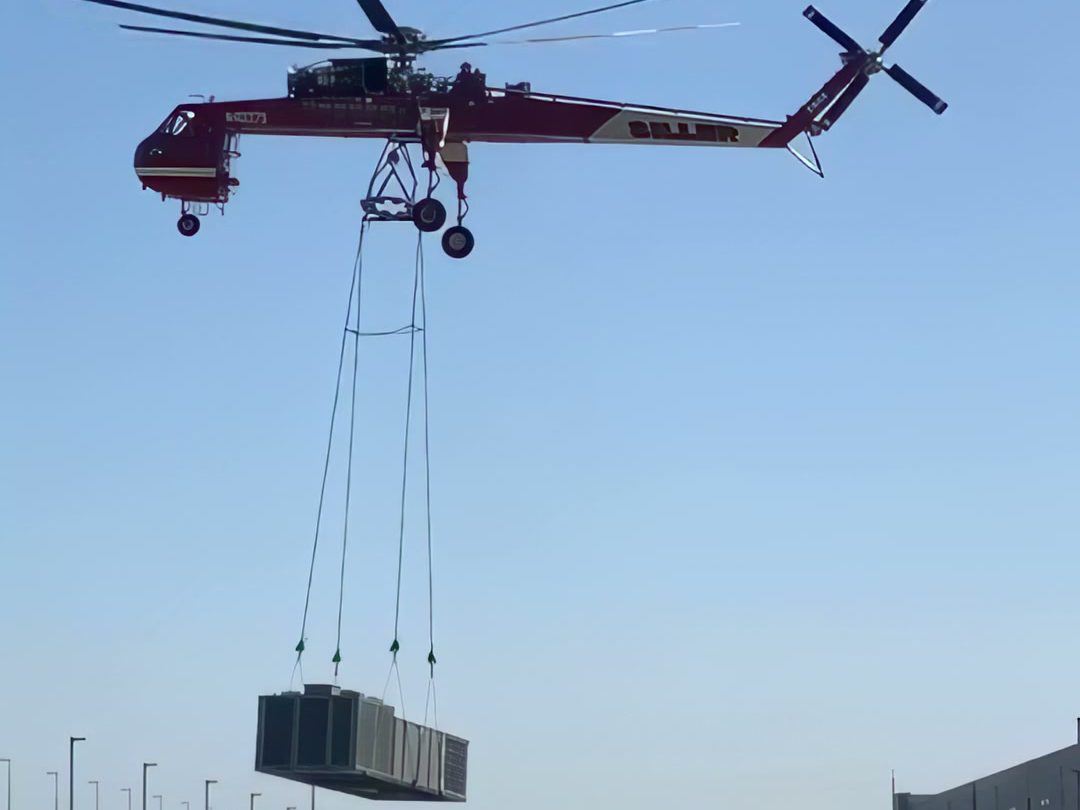

- 03Rooftop units (RTU · MAU)
- 04Duct and power connections
WHAT WE BUILD
WHAT WE SELF-PERFORM
Process tools
Tools rigged in, set to the layout on the fab floor or the access floor, and hooked up to process gas, chemical and UPW piping, power and controls.
HVAC equipment
AHUs, MAUs, FFUs, dry cooling coils (DCC) and exhaust fans set by crane or rigging and connected to duct, piping and power.
Electrical gear
Switchgear, switchboards, transformers, UPS and MCCs set, leveled, anchored and landed.
AMHS
AMHS rail hung from the ceiling grid main tees after the FFUs are set, then aligned and secured along the route.
HOW WE WORK
FROM RECEIVING TO START-UP
01

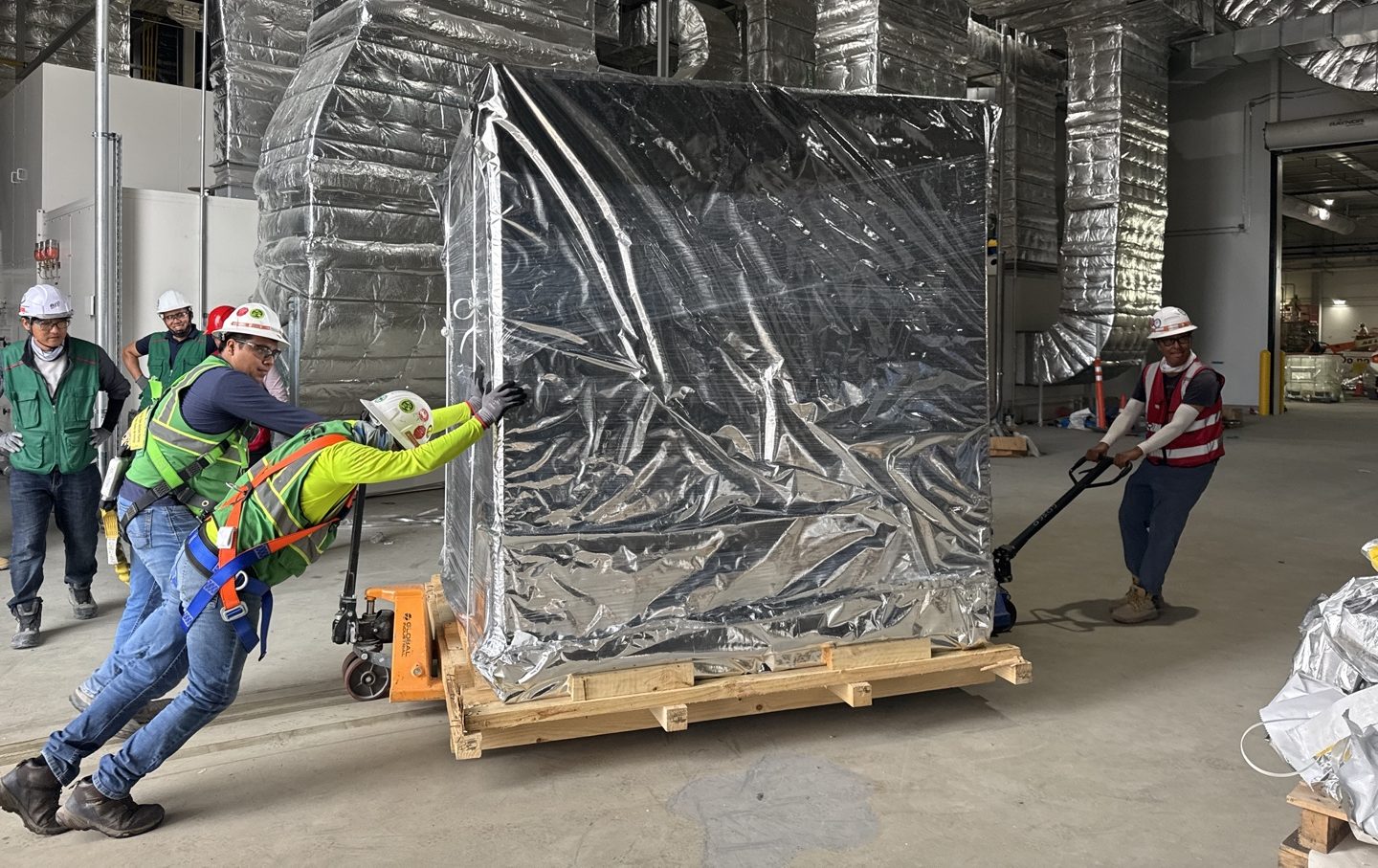

Receiving & Rigging
Equipment received, checked for shipping damage and rigged in along a planned path, by crane where needed.
02
Setting & Leveling
Set to the layout, leveled, aligned and anchored on the floor, the pad, the roof or the access floor.
03
Hook-up
Piping, power and controls connected: process gas, chemical and UPW, duct and HVAC piping, feeders to the main disconnect, and control and network wiring.
04
Testing & Start-up Support
Our connections tested, labeled and documented, with our crews on hand to support the start-up.
TYPICAL SCOPE
TYPICAL SCOPE
Process tools
- Tool move-in, rigging and setting
- Process gas piping hook-up
- Chemical piping hook-up
- UPW piping hook-up
HVAC equipment
- Air handling units (AHU) and makeup air units (MAU)
- FFUs and dry cooling coils (DCC)
- Exhaust fans
- Connection to duct, piping and power
Electrical gear
- Switchgear and switchboards
- Transformers
- UPS and battery systems
- Motor control centers (MCC) and VFDs
Tool power and AMHS (fab)
- Feeders from the sub-fab distribution
- Routed through the waffle slab and under the access floor
- Terminated at the tool main disconnect
- AMHS rail hung from the ceiling grid main tees
BY OTHERS · we coordinate the interfaces
- AMHS vehicles and controls (equipment supplier)
- Utility service
ON SITE
EQUIPMENT IN PLACE
PROJECT EXPERIENCE
WORK WE HAVE BUILT
Each card lists the scope we actually built on that job. Owners are named for identification only.
Equipment we have installed and hooked up
2024 – 2025Completed
LGES Georgia battery plant
LGES Georgia · Ellabell, GA
- Switchgear installation
- UPS and battery installation
- Dry-type transformer installation

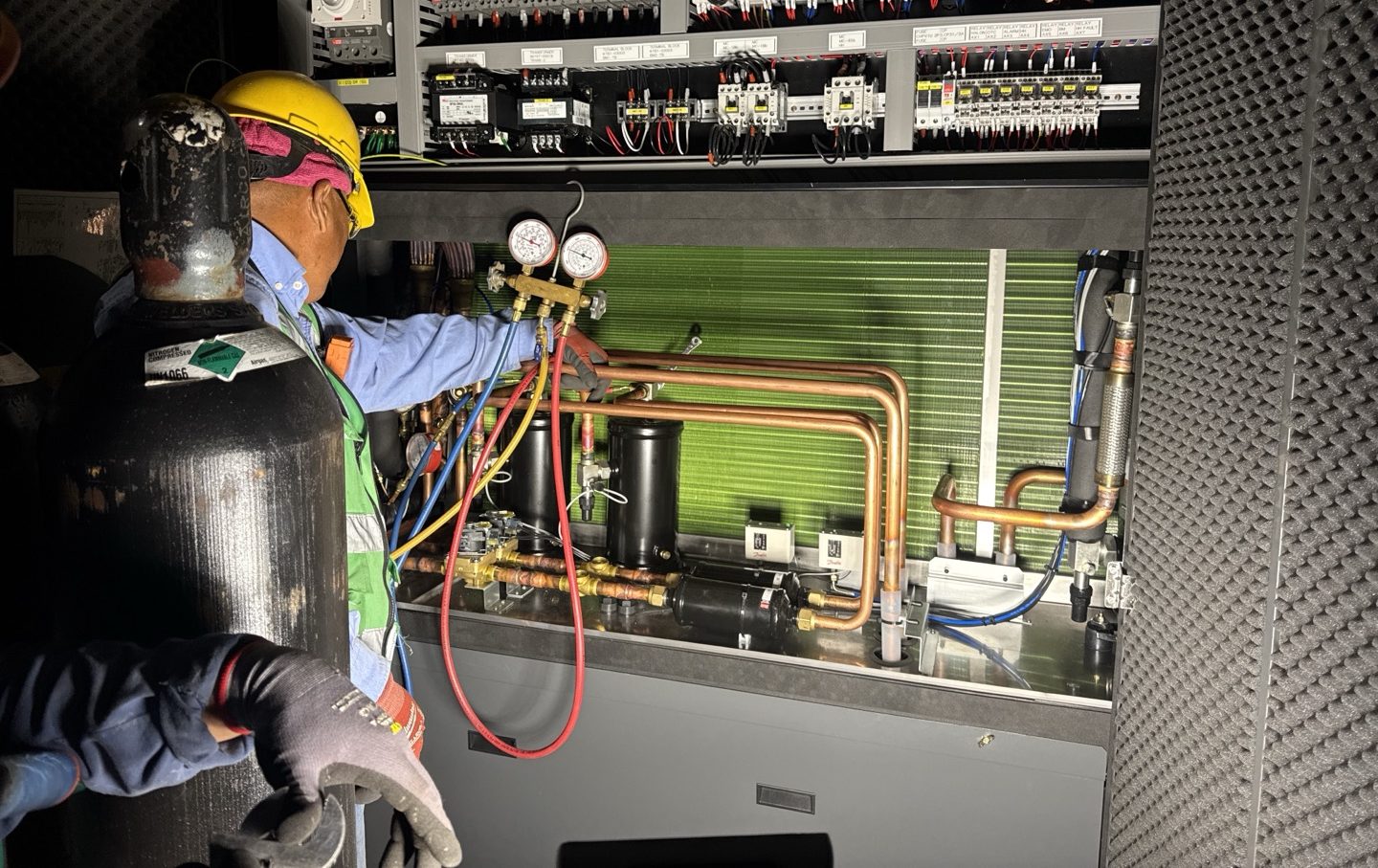

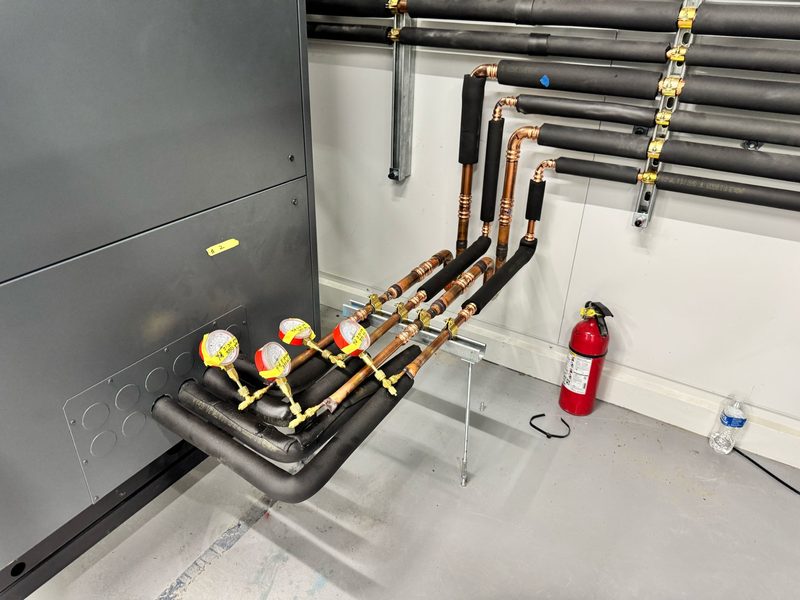

- Precision cooling (CRAC) units
WHY PROCON
About PROCONOne integrated team
Cleanroom architecture, electrical and controls, HVAC, AMHS, and equipment setting and hook-up under one contract.
Fewer interface gaps, no finger-pointing between trades, fewer delays.
Korean experience, U.S. codes
Bilingual Korean–English teams bring experience from Korean advanced-manufacturing plants and build to U.S. codes and practice.
COMMON QUESTIONS
FAQ.
- What equipment do you install?
- Process tools, HVAC equipment such as AHUs, MAUs, FFUs, dry cooling coils and exhaust fans, electrical gear such as switchgear, transformers, UPS and MCCs, and AMHS rail. We receive, rig, set and level the equipment and hook up its piping, power and controls.
- Do you install AMHS?
- Yes. Once the FFUs are in, we hang the AMHS rail from the ceiling grid main tees and align and secure it along the route. The vehicles and their controls come from the equipment supplier.
- How does tool power reach the tool?
- From the sub-fab distribution, up through the waffle slab and under the access floor, to the tool main disconnect. We run the feeder and terminate it at the disconnect.
- Do you support start-up?
- Yes. We test our connections, label and document them, and keep our crews on hand to support the start-up.
BROCHURE
Semiconductor & Advanced Packaging edition
The industry edition is being finalized. Ask for it and we will send it as soon as it is released. The company profile is available now.
KEEP EXPLORING
TALK TO THE INSTALLATION TEAM
Send us the equipment list, the layout and the schedule. We reply within one business day.
